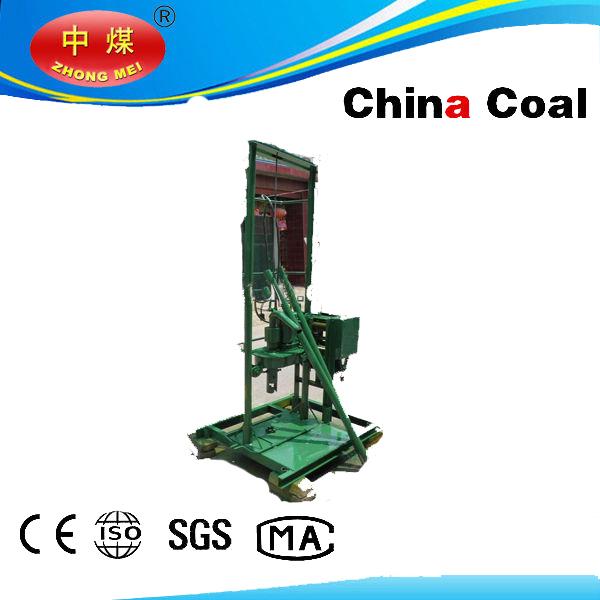

Water well drilling rig

The largest drilling depth

(verified)

Open drilling diameter: 10cm, drilling depth: 160m.

open drilling diameter: 22cm, drilling depth: 80m.

Open drilling diameter: 30cm,drilling depth: 30m.

Perfect drilling depth

≤120m

Input voltage

220V

The max open drilling diameter

250----300mm

Total power

4.55kW

Power of drive motor

1.25kw

Power of lifting motor

1.1kw

The max lifting weight

750kg

Motor power of submersible pump

2.2kw(head: 46m, flow 12m3/h)

Rotating speed of drive rods

150r/min(empty load)

Operating platform size on the floor

1m2

Max height of headframe

3.5m

Max weight after separating

<40kg

Max length after separating

2meters

Package No.1

1100X450X450mm

Package No.2

670X670X450mm

The weight of whole set(no contains drilling rod)

200kg

Specification of drilling rods

42#: 2meters lenght, 5.5kg/pc.

Operating people number

2 people
