Product Introduction:
The machine of whole structure and characteristics:
Totally European design ,streamlined looking , Monoblock , Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material .
As the cutting beam had been designed in inner-incliner structure ,it is easy for plates to fall down and the accuracy of products can also be guaranteed.
High accuracy ,high efficiency ,simple and convenient operation ,good performance ,favorable price and best service .
The machine by the European Union CE certification and ISO quality system certification
Hydraulic system :
Adopt integrated hydraulic control system ,more reliable and easy for maintenance . The hydraulic system consists of motor ,oil pump and valve groups and it is installed at the top of the oil box .
Every complete working cycle can be achieved through the control of hydraulic valve . The remote adjustment valve can be adjustment valve can adjust the working pressure at the right side of the wall board.
All seals in cylinder in PARKER from USA ,the most famous brand ,good quality and high performance ,hydraulic system is from Bosch ,Germany .
Overload overflow protection is outfitted to hydraulic system ,which can assure no leakage,and the oil level can be read or seen directly .
Main Parameters:
Configuration Details :
CNC control system | Mitsubishi of China | DELEM 84 of Italy |
Driving | AC servo motor (Siemens of German) | AC servo motor (Siemens of German ) |
Guide screw | Ball screw (PMI of Taiwan ) | Ball scraw (PMI of Taiwan) |
Guide | High precision guide (domestic) | High precision guide (domestic) |
Gauge device | CNC back gauge device | CNC back gauge device |
Hydraulic system | Taiwan | Taiwan |
Technical specification :
Serial NO. | Name | Numerical value | Unit | Remark /Number |
250T/4000 |
1 | Bending capacity | 2500 | KN | |
2 | Optional NC Control of Y+X axis or Delem DA41CNC Control of Y+X+Manual R axis |
3 | Table size length-A | 4000 | mm | |
4 | Distance between uprights-B | 3000 | mm | |
5 | Throat depth-D | 380 | mm | |
6 | Y Axis Slider stroke-C | 200 | mm | |
7 | Max.open height between table and slider-E | 450 | mm | |
8 | Worktable height above the ground-F | 700 | mm | |
9 | X Axis Back gauge Range | Travel Range | 500 | mm | |
Max.Speed | 200 | mm/sec | |
10 | Speed of Ram Stroke | High Advance Speed | 110 | Mm/sec | |
Working Speed | 5~15 | |
High Return Speed | 100 | |
11 | Gear Pump | Type | 63YCY14-1B | mm | |
Nominal Flow | 63 | Ml/r | |
Nominal Pressure | 26 | Mpa | |
12 | Oil Tank Capacity | 110 | L | |
13 | Main Motor | Type | Y180L-4P | | |
Power | 18.5 | KW | |
Rotate Speed | 1460 | R/min | |
14 | External(LxWxH) | 4060x1800x3000 | mm | |
15 | Power requirement | 380V (-15%,+15%) 50Hz ,3PH |
Product Tags:
|
|

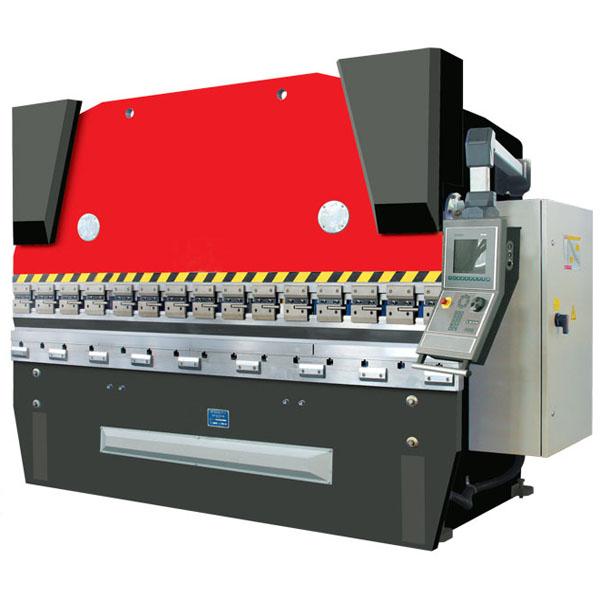

WC67Y-250T/4000 Hydraulic Plate Bending Images
|
